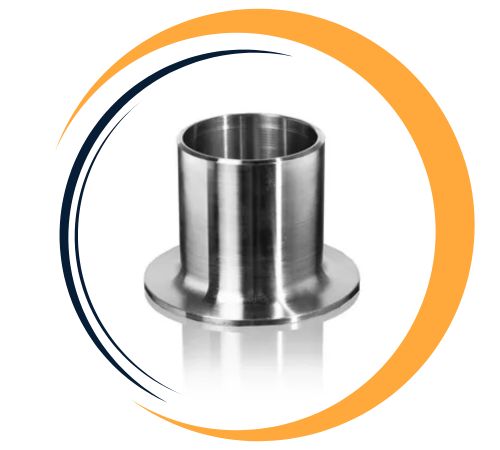

Smith Fittings, located in Canberra, Australia, stands out as a top manufacturer and supplier of high-quality Lap Joint Stub Ends. Known for their precision, durability, and straightforward installation, these fittings are designed to deliver reliable performance in industrial piping systems. The Lap Joint Stub Ends from Smith Fittings make it easy to assemble and disassemble flanged connections, which helps cut down on maintenance time and costs while ensuring a leak-proof seal. Catering to sectors like chemical processing, petrochemical, water treatment, and power generation, Smith Fittings guarantees that every product meets international standards, providing efficient, durable, and high-performance piping solutions for critical applications that require both flexibility and reliability.
Typically made from carbon steel, stainless steel, or alloy materials, Lap Joint Stub Ends boast high mechanical strength, corrosion resistance, and long-lasting durability. These fittings showcase impressive mechanical properties, including high tensile and yield strength, toughness, and stability even under varying internal pressures and temperature changes. Their design allows for easy alignment with companion flanges, which reduces stress on piping systems and boosts operational efficiency. Lap Joint Stub Ends offer a strong, dependable solution for high-pressure and high-temperature environments while ensuring long-term performance and structural integrity.
| Buttweld Lap Joint Stub Ends size | Welded Stub Ends : 1/2″ – 48″ |
|---|---|
| Buttweld Lap Joint Stub Ends Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Lap Joint Stub Ends Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Lap Joint Stub Ends Connection | Welding |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Stub Ends |
| ASME B16.9 Buttweld Lap Joint Stub Ends Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Lap Joint Stub Ends Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ANSI B16.9 Buttweld Lap Joint Stub Ends Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

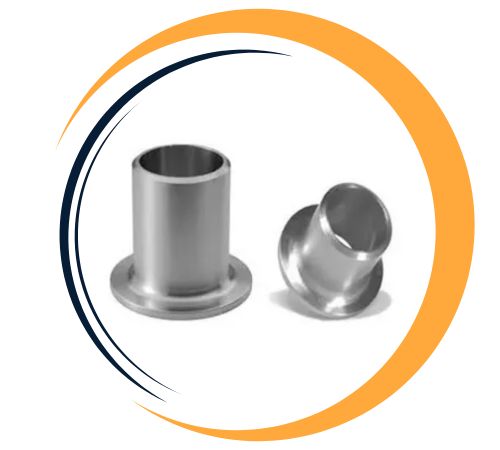

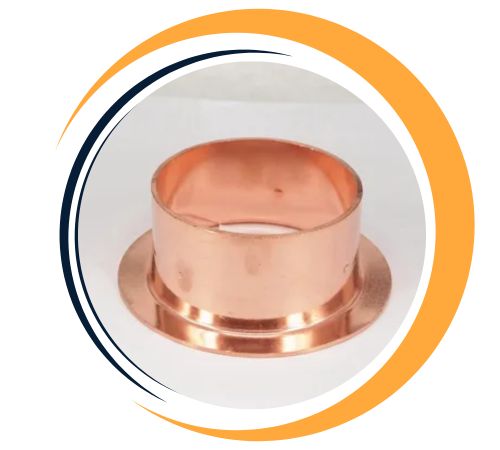

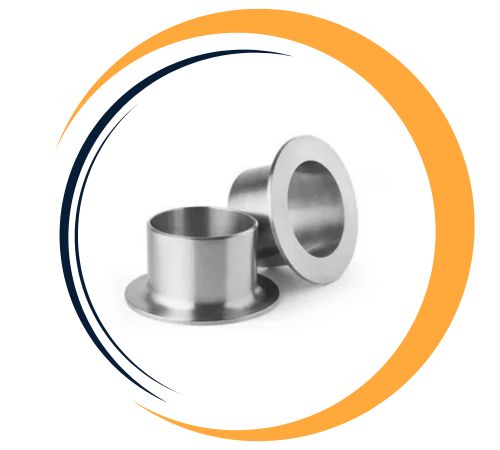

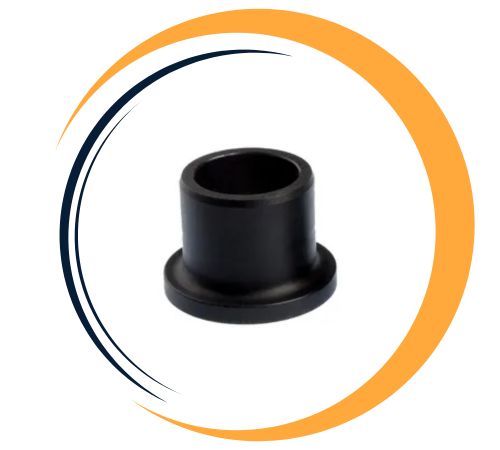

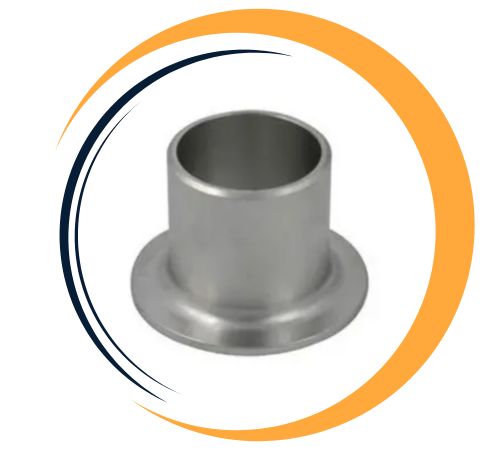

Smith Fittings is a leading supplier of Lap Joint Stub Ends in Canberra, Australia. We offer an extensive range of Lap Joint Stub Ends, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Lap Joint Stub Ends from Smith Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Lap Joint Stub Ends offer several advantages in piping systems. They provide a versatile, cost-effective solution for connections, especially in systems requiring frequent disassembly for maintenance. The design allows easy alignment and welding, ensuring a secure and leak-free joint. These stub ends are ideal for use with lap joint flanges, providing flexibility in installation and reducing the risk of flange misalignment. Additionally, their corrosion resistance and ability to withstand high-pressure applications make them a reliable choice for oil and gas, chemical, and power generation industries.
| Nominal Pipe Size
(NPS) |
Outside Diameter at Bevel | Long Pattern | Short Pattern | Radius of Fillet | Diameter of Lap | |
| Max | Min | F | F | R | G | |
| 1/2 | 22.8 | 20.5 | 76 | 51 | 3 | 35 |
| 3/4 | 28.1 | 25.9 | 76 | 51 | 3 | 43 |
| 1 | 35.0 | 32.6 | 102 | 51 | 3 | 51 |
| 1-1/4 | 43.6 | 41.4 | 102 | 51 | 5 | 64 |
| 1-1/2 | 49.9 | 47.5 | 102 | 51 | 6 | 73 |
| 2 | 62.4 | 59.5 | 152 | 64 | 8 | 92 |
| 2-1/2 | 75.3 | 72.2 | 152 | 64 | 8 | 105 |
| 3 | 91.3 | 88.1 | 152 | 64 | 10 | 127 |
| 3-1/2 | 104.0 | 100.8 | 152 | 76 | 10 | 140 |
| 4 | 116.7 | 113.5 | 152 | 76 | 11 | 157 |
| 5 | 144.3 | 140.5 | 203 | 76 | 11 | 186 |
| 6 | 171.3 | 167.5 | 203 | 89 | 13 | 216 |
| 8 | 222.1 | 218.3 | 203 | 102 | 13 | 270 |
| 10 | 277.2 | 272.3 | 254 | 127 | 13 | 324 |
| 12 | 328.0 | 323.1 | 254 | 152 | 13 | 381 |
| 14 | 359.5 | 354.8 | 305 | 152 | 13 | 413 |
| 16 | 411.0 | 405.6 | 305 | 152 | 13 | 470 |
| 18 | 462 | 456 | 305 | 152 | 13 | 533 |
| 20 | 514 | 507 | 305 | 152 | 13 | 584 |
| 22 | 565 | 558 | 305 | 152 | 13 | 641 |
| 24 | 616 | 609 | 305 | 152 | 13 | 692 |
Yes, custom sizes for Lap Joint Stub Ends are available at Smith Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@smithfittings.com.
These fittings are commonly found in industries that require frequent maintenance, inspection, or pipe disassembly. Typical applications include chemical and petrochemical plants, oil and gas pipelines, water treatment facilities, and power generation systems. Designed to work seamlessly with lap joint flanges, these fittings provide secure and flexible connections, minimizing downtime during maintenance or modifications. With Smith Fittings’ Lap Joint Stub Ends, you can count on leak-proof performance, structural integrity, and an extended service life, making them vital for industrial operations that prioritize safety and efficiency.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
