Incoloy 825 Pipe Fittings Manufacturer and Supplier in Canberra, Australia

Smith Fittings, based in Canberra, Australia, is a reliable manufacturer and supplier of Incoloy 825 pipe fittings, providing top-notch solutions for industries that operate in harsh, corrosive, and high-temperature settings. Incoloy 825 is a unique alloy made of nickel, iron, and chromium, enhanced with molybdenum, copper, and titanium, which gives it exceptional resistance to acid attacks, stress corrosion cracking, and oxidation. Smith Fittings offers a comprehensive range of Incoloy 825 pipe fittings—including elbows, tees, reducers, and caps—designed to meet international standards and engineered for durability and long-lasting performance. These fittings are perfect for critical applications in sectors like chemical processing, marine, power generation, and pollution control.

UNS N08825 Elbow And Most Reliable Alloy 825 Tubing Fittings Australia, Incoloy 825 Pipe Fitting Perth, ASTM B366 N08825 Incoloy 825 Fittings Suppliers Canberra, Incoloy 825 Buttweld Fittings Melbourne, ASTM B366 WPNICMC Fittings Adelaide, Incoloy 825 Elbow Fittings Sydney, UNS N08825 Tee Fittings Dealer Brisbane, Alloy 825 Fittings Stockists Canberra, Australia.

Incoloy 825 Pipe Fittings Specification

Spec Chart Of:	Incoloy 825 Pipe Fittings
Dimension Table Of:	ANSI B16.9, JIS B2312, MSS-SP-43 Type B, ASME B16.28, JIS B2313, MSS-SP-43 Type A
Fittings Materials Directory:	Iron (Ductile/Cast), Carbon Steel, Titanium, Nickel Alloys, Nickel, Cupro-Nickel 90/10 & 70/30, Brass, Bronze, Copper, Chrome-molybdenum, Inconel, Monel, Tantalum, Stainless Steel, Hastalloy, Alloy Steel
Size Calculation:	Normal Pipe Size (1⁄₂”) to Normal Pipe Size (48”)
Standard Fittings Chart	JIS, NPT, ISO, DIN, EN
Manimum Pressure	Class 150# To Class 2500#.
Schedule Chart:	Schedule 5s/ Schedule 10s/ Schedule 40/ Schedule 80/ Schedule 120/ Schedule 160.
Most Demanded Fittings Types	Adapter, 4 Wye, End Cap, Stub End, Reducer, Cross, Bend, Elbow, Tee
Buttweld Fittings Connection Type	Threaded/ Weld/ Flange/ Clamp End / End Bell

Incoloy 825 Pipe Fittings Chemical Composition

The Chemical Composition of Incoloy 825 Pipe Fittings, %
Nickel	38.0-46.0
Iron	≥22.0
Chromium	19.5-23.5
Molybdenum	2.5-3.5
Copper	1.5-3.0
Titanium	0.6-1.2
Carbon	≤0.05
Manganese	≤1.00
Sulfur	≤0.030
Silicon	≤0.50
Aluminum	≤0.20

Incoloy 825 Pipe Fittings Mechanical Properties

Tensile Strength, min.		Yield Strength, min.		Elongation, min.	Elastic Modulus
Mpa	%	Gpa	10⁶psi	ksi	Mpa	ksi
690	45	206	29.8	100	310	45

Incoloy 825 Pipe Fittings Equivalent Indian Standard

STANDARD	AFNOR	EN	OR	WERKSTOFF NR.	UNS	JIS	BS	GOST
Incoloy 825 Pipe Fittings	NFE30C20DUM	NiCr21Mo	XH38BT	2.4858	N08825	NCF 825	NA 16	ЭП703

Incoloy 825 Pipe Fittings consist of about 38–46% nickel, 19.5–23.5% iron, 19.5–23.5% chromium, 2.5–3.5% molybdenum, 1.5–3% copper, and 0.6–1.2% titanium. This blend provides outstanding resistance to both oxidizing and reducing acids, as well as stress corrosion cracking and pitting in environments with chlorides. These fittings boast a minimum tensile strength of 690 MPa, a yield strength of 310 MPa, and an elongation of 30%. Incoloy 825 retains excellent mechanical properties and corrosion resistance over a wide temperature range, making it perfect for high-pressure applications and chemically aggressive media.

Distributors of Incoloy 825 Buttweld Pipe Fittings in Australia, ASTM B366 N08825 Equal Tee Perth, 825 Incoloy® Alloy Welded Pipe Fittings Suppliers Canberra, Werkstoff Nr. 2.4858 Concentric Reducer Melbourne, 800HT Incoloy 825 45°/90°/180° Butt weld Elbow Adelaide, Nickelvac® 825 Pipe Fittings Sydney, Alloy 825 Buttweld Pipe Nipple Brisbane, High-Quality ASME B366 Incoloy N08825 Stub End Canberra, Australia.

Largest Incoloy 825 Pipe Fittings Supplier in Canberra, Australia

Incoloy 825 (UNS N08825) consists of about 38–46% nickel, 19.5–23.5% chromium, 2.5–3.5% molybdenum, 1.5–3% copper, and trace amounts of titanium, striking a remarkable balance between corrosion resistance and mechanical strength. This alloy is particularly effective in dealing with sulfuric and phosphoric acids, as well as environments containing chlorides. It maintains its structural integrity and resists pitting, crevice corrosion, and stress corrosion cracking. Its excellent weldability and resistance to sensitization make it a great choice for both welded and pressure piping systems.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Why Choose Incoloy 825 Pipe Fittings from Smith Fittings?

Incoloy 825 Pipe Fittings from Smith Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS N08825 Elbow And Most Reliable Alloy 825 Tubing Fittings Australia, Incoloy 825 Pipe Fitting Perth, ASTM B366 N08825 Incoloy 825 Fittings Suppliers Canberra, Incoloy 825 Buttweld Fittings Melbourne, ASTM B366 WPNICMC Fittings Adelaide, Incoloy 825 Elbow Fittings Sydney, UNS N08825 Tee Fittings Dealer Brisbane, Alloy 825 Fittings Stockists Canberra, Australia.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Incoloy 825 pipe fittings offer several advantages, making them ideal for demanding applications. They provide exceptional resistance to corrosion, including pitting, crevice corrosion, and intergranular attack, even in harsh acidic and oxidizing environments. Their high nickel content ensures resistance to stress corrosion cracking, while molybdenum enhances protection against chloride-induced corrosion. These fittings maintain excellent mechanical strength and stability across a wide temperature range. Additionally, they are durable, easy to fabricate, and cost-effective, ensuring long-term reliability in industries like chemical processing, marine engineering, and oil and gas exploration.

Standard Dimensions Of Alloy 825 Pipe Fittings

NPS (Normal Pipe Size)	O.D. (Outside Daimeter)		Elbow 90 Deg		Elbow 45 Deg		Return Elbow 180 Deg
*(inch)*			Long Radius Elbow	Short Radius	Long Radius Elbow		Long Radius Elbow
	*(millimeter/ MM)*	*(inch./ Inches)*	Center to Face (Inches)	Center to Face (Inches)	Center to Face (Inches)	Radius (Inches)	Center to Center (Inches)	Back to face (Inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	–	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Alloy 825 Pipe Fittings Weight Chart Table

DN (Normal Pipe Size) For ASME B16.9	Schedule 10S			Schedule 40S			Schedule 80S
DN (Normal Pipe Size) For ASME B16.9	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

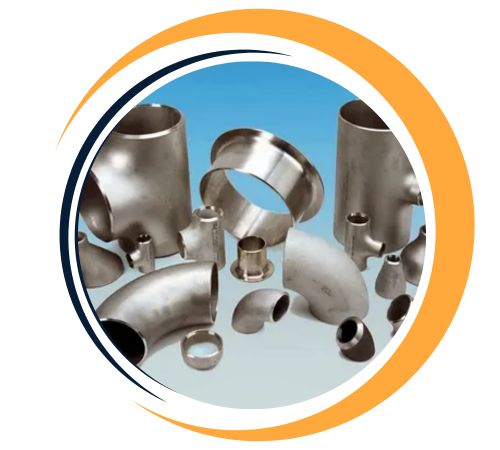

Types of Incoloy 825 Pipe Fittings

Are Custom Sizes Available for Incoloy 825 Pipe Fittings?

Yes, custom sizes for Incoloy 825 Pipe Fittings are available at Smith Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@smithfittings.com.

Distributors of Incoloy 825 Buttweld Pipe Fittings in Australia, ASTM B366 N08825 Equal Tee Perth, 825 Incoloy® Alloy Welded Pipe Fittings Suppliers Canberra, Werkstoff Nr. 2.4858 Concentric Reducer Melbourne, 800HT Incoloy 825 45°/90°/180° Butt weld Elbow Adelaide, Nickelvac® 825 Pipe Fittings Sydney, Alloy 825 Buttweld Pipe Nipple Brisbane, High-Quality ASME B366 Incoloy N08825 Stub End Canberra, Australia.

Application Industry of Incoloy 825 Pipe Fittings

Incoloy 825 pipe fittings are commonly utilized in chemical processing, nuclear fuel reprocessing, acid production, oil and gas piping, pickling operations, and marine outfalls. Their outstanding resistance to corrosive substances and high-temperature oxidation makes them ideal for transporting aggressive media under pressure. These fittings ensure leak-proof, durable connections that minimize maintenance and guarantee safe, long-term performance. Smith Fittings’ Incoloy 825 pipe fittings are designed to excel in the most challenging service conditions, ensuring high reliability and operational efficiency.
