Smith Fittings, located in Canberra, Australia, has built a solid reputation as a reliable manufacturer and supplier of top-notch Equal, Reducing, and Split Tees. Known for their precision and durability, the company ensures that every tee meets strict industry standards, providing dependable performance across various piping systems. The Equal, Reducing, and Split Tees from Smith Fittings are designed to offer exceptional strength, precise dimensions, and resistance to mechanical stress, guaranteeing leak-free and long-lasting connections. Catering to sectors like plumbing, chemical processing, oil and gas, and manufacturing, Smith Fittings is committed to quality, making them a trusted source for versatile and durable piping solutions.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Seamless Pipe Tee Size: 1/2″~24″
ERW / Welded / Fabricated Pipe Tee Size: 1/2″ (15 NB) to 48″ (1200NB)

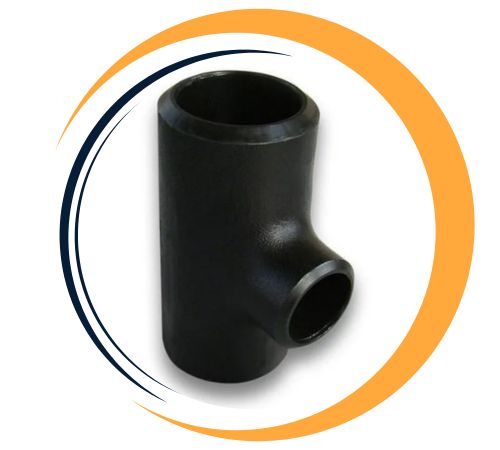

Form: Pipe Tee, Equal Tee, Fitting Tee, Butt weld Tee
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Seamless Reducing Tee Size: 1/2″~24″
ERW / Welded / Fabricated Reducing Tee Size: 1/2″ (15 NB) to 48″ (1200NB)

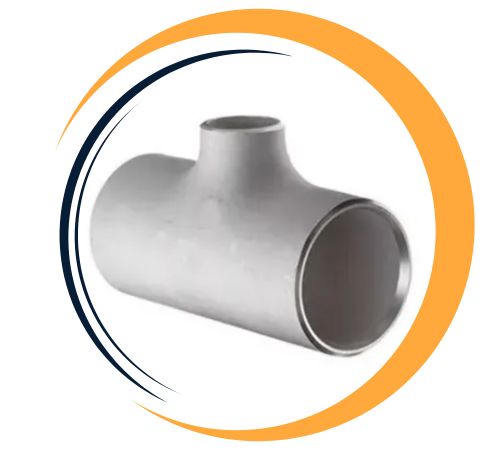

Form: Unqual Tee, Reducing Tee
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Size: 2″~36″ 15-1200
Pressure 150#~2500#
Wall Thickness : Sch 10- Sch160
Material : Stainless Steel, Carbon Steel, Alloy Steel, Monel, Hastelloy, Inconel, Incoloy, Nickel Alloy, Copper Nickel, Super Duplex Steel, Super Duplex Steel, Titanium
Form: Split Tees
These tees are typically crafted from high-grade metals such as stainless steel, carbon steel, or alloy steel, which provide outstanding mechanical properties like high tensile strength, toughness, and impact resistance. Their sturdy construction enables them to handle the pressure, stress, and temperature fluctuations that are often part of piping systems. With their ability to maintain dimensional stability, these tees ensure secure and leak-proof connections between pipes of the same or different diameters. The blend of strength, durability, and precision makes them perfect for both high-pressure and standard fluid transport applications in industrial and commercial settings.
Smith Fittings is a leading supplier of Tee Fittings in Canberra, Australia. We offer an extensive range of Equal/ Reducing/ Split Tee, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Equal/ Reducing/ Split Tee from Smith Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
A tee is a versatile pipe fitting that connects three pipe sections, creating a branching point for fluid or gas flow. It is designed to ensure smooth flow, minimize resistance, and distribute pressure effectively. Tees are available in various materials and sizes, offering durability, corrosion resistance, and ease of installation. They provide a reliable solution for creating branch connections, enabling the efficient flow of liquids or gases through piping systems.
| Nominal Pipe Size | Outside diameter at bevel | Center-to-End | |
|---|---|---|---|
| Run (C) | Outlet(M) | ||
| 1/2″ | 21.3 | 25 | 25 |
| 3/4″ | 26.7 | 29 | 29 |
| 1″ | 33.4 | 38 | 38 |
| 1 1/4″ | 42.2 | 48 | 48 |
| 1 1/2″ | 48.3 | 57 | 57 |
| 2″ | 60.3 | 64 | 64 |
| 2 1/2″ | 73.0 | 76 | 76 |
| 3″ | 88.9 | 86 | 86 |
| 3 1/2″ | 101.6 | 95 | 95 |
| 4″ | 114.3 | 105 | 105 |
| 5″ | 141.3 | 124 | 124 |
| 6″ | 168.3 | 143 | 143 |
| 8″ | 219.1 | 178 | 178 |
| 10″ | 273.0 | 216 | 216 |
| 12″ | 323.8 | 254 | 254 |
| 14″ | 355.6 | 279 | 279 |
| 16″ | 406.4 | 305 | 305 |
| 18″ | 457.0 | 343 | 343 |
| 20″ | 508.0 | 381 | 381 |
| 22″ | 559.0 | 419 | 419 |
| 24″ | 610.0 | 432 | 432 |
| Nominal Pipe Size | Outside diameter at bevel | Center-to-End | |||
|---|---|---|---|---|---|
| Run | Outlet | Run | Outlet | Run (C) | Outlet (M) |
|
1/2″ |
1/4″
3/8″ |
21.3 |
13.7
17.3 |
25 |
25 |
|
3/4″ |
3/8″
1/2″ |
26.7 |
17.3
21.3 |
29 |
29 |
|
1″ |
1/2″
3/4″ |
33.4 |
21.3
26.7 |
38 |
38 |
|
1 1/4″ |
1/2″
3/4″
1″ |
42.2 |
21.3
26.7
33.4 |
48 |
48 |
|
1 1/2″ |
1/2″
3/4″
1″
1 1/4″ |
48.3 |
21.3
26.7
33.4
42.2 |
57 |
57 |
|
2″ |
3/4″
1″
1 1/4″
1 1/2″ |
60.3 |
26.7
33.4
42.2
48.3 |
64 |
44
51
57
60 |
|
2 1/2″ |
1″
1 1/4″
1 1/2″
2″ |
73.0 |
33.4
42.2
48.3
60.3 |
76 |
57
64
67
70 |
|
3″ |
1 1/4″
1 1/2″
2″
2 1/2″ |
88.9 |
42.2
48.3
60.3
73.0 |
86 |
70
73
76
83 |
|
3 1/2″ |
1 1/2″
2″
2 1/2″
3″ |
101.6 |
48.3
60.3
73.0
88.9 |
95 |
79
83
89
92 |
|
4″ |
1 1/2″
2″
2 1/2″
3″
3 1/2″ |
114.3 |
48.3
60.3
73.0
88.9
101.6 |
105 |
86
89
95
98
102 |
|
5″ |
2″
2 1/2″
3″
3 1/2″
4″ |
141.3 |
60.3
73.0
88.9
101.6
114.3 |
124 |
105
108
111
114
117 |
|
6″ |
2 1/2″
3″
3 1/2″
4″
5 |
168.3 |
73.0
88.9
101.6
114.3
141.3 |
143 |
121
124
127
130
137 |
|
8″ |
3 1/2″
4″
5″
6″ |
219.1 |
101.6
114.3
141.3
168.3 |
178 |
152
156
162
168 |
|
10″ |
4″
5″
6″
8″ |
273.0 |
114.3
141.3
168.3
219.1 |
216 |
184
191
194
203 |
|
12″ |
5″
6″
8″
10″ |
323.8 |
141.3
168.3
219.1
273.0 |
254 |
216
219
229
241 |
|
14″ |
6″
8″
10″
12″ |
355.6 |
168.3
219.1
273.0
323.8 |
279 |
238
248
257
270 |
|
16″ |
6″
8″
10″
12″
14″ |
406.4 |
168.3
219.1
273.0
323.8
355.6 |
305 |
264
273
283
295
305 |
|
18″ |
8″
10″
12″
14″
16″ |
457.0 |
219.1
273.0
323.8
355.6
406.4 |
343 |
298
308
321
330
330 |
|
20″ |
8″
10″
12″
14″
16″
18″ |
508.0 |
219.1
273.0
323.8
355.6
406.4
457.0 |
381 |
324
333
346
356
356
368 |
|
22″ |
10″
12″
14″
16″
18″
20″ |
559.0 |
273.0
323.8
355.6
406.4
457.0
508.0 |
419 |
359
371
381
381
394
406 |
|
24″ |
10″
12″
14″
16″
18″
20″
22″ |
610.0 |
273.0
323.8
355.6
406.4
457.0
508.0
559.0 |
432 |
384
397
406
406
419
432
432 |
Yes, custom sizes for Equal/ Reducing/ Split Tee are available at Smith Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@smithfittings.com.
Equal, Reducing, and Split Tees are essential in industries that need efficient fluid distribution and reliable piping connections. You’ll find them in plumbing networks, chemical and petrochemical plants, oil and gas pipelines, HVAC installations, and manufacturing process systems. Equal Tees connect pipes of the same diameter, Reducing Tees link pipes of different diameters, and Split Tees offer specialized flow distribution solutions. With Smith Fittings’ tees, you can expect smooth fluid flow, operational efficiency, and structural integrity, providing durable and long-lasting solutions for various industries.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
