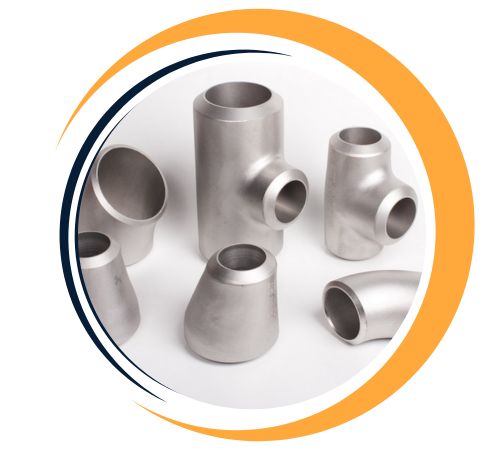

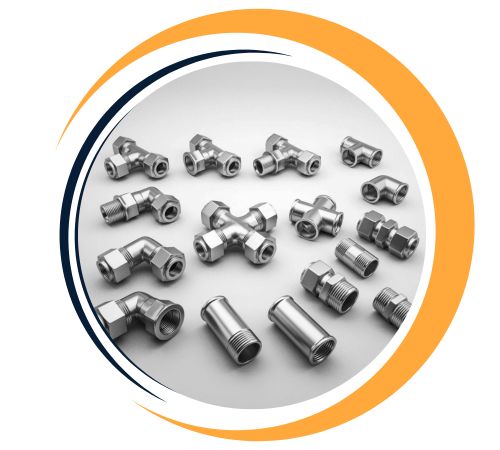

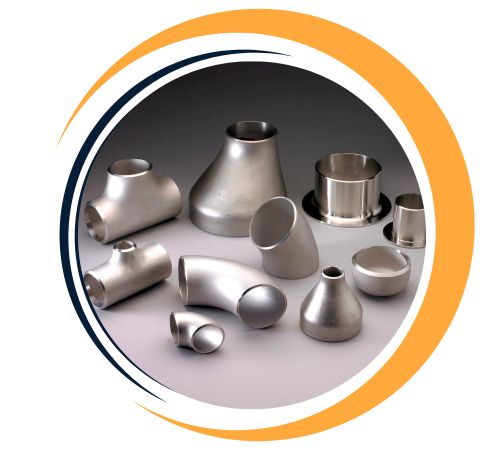

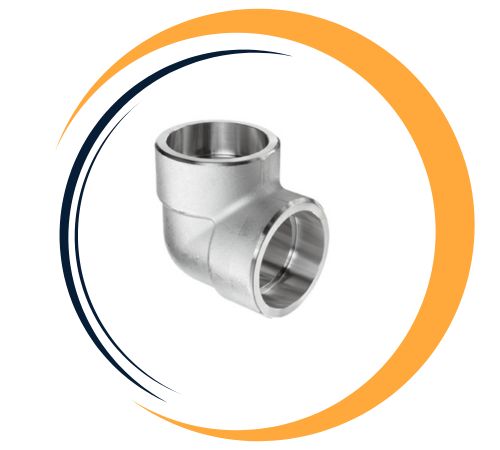

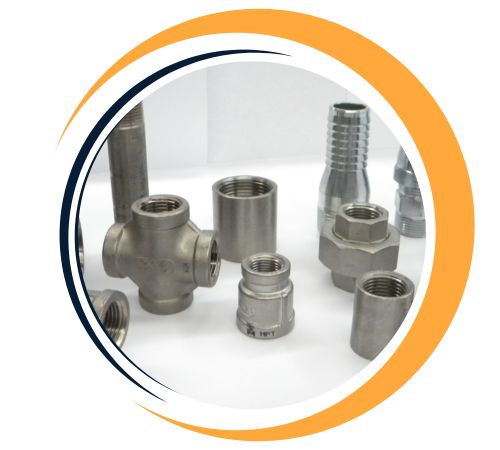

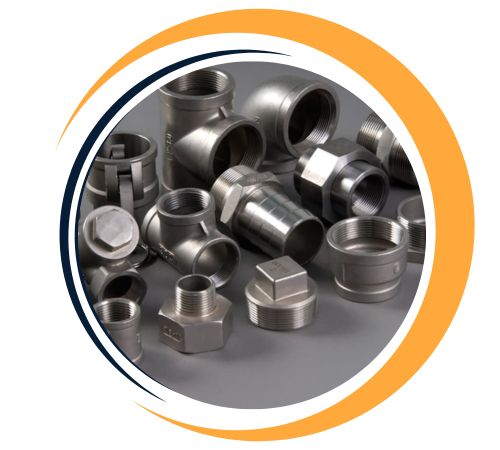

Smith Fittings is a top-notch manufacturer and supplier located in Canberra, Australia, specializing in high-quality **Carbon Steel Pipe Fittings**. These fittings are designed to deliver outstanding strength, durability, and dependable performance across a variety of industrial applications. Smith Fittings offers a wide selection of carbon steel pipe fittings, including elbows, tees, reducers, caps, and couplings, all crafted to meet international standards like ASTM, ASME, and EN specifications. You’ll find Carbon Steel Pipe Fittings commonly used in the oil and gas, petrochemical, chemical, and power generation sectors, where mechanical strength, temperature resistance, and durability are crucial.
| Grade Specification | Carbon Steel: ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70Low temperature Steel: A420 WPL3 / A420 WPL6 |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
These fittings are mainly made from carbon and manganese, which give them impressive mechanical strength and excellent resistance to pressure and temperature. Depending on the specific grade, they can provide tensile strengths ranging from 400 to 700 MPa and yield strengths from 250 to 500 MPa. They also boast good weldability, formability, and toughness, making them perfect for high-pressure, high-temperature, and demanding service conditions. Their chemical makeup and heat treatment processes ensure consistent quality and long-lasting durability.
|
Element |
Weight % |
|
Carbon |
0.08 – 0.15 |
|
Nickel |
0.5 max |
|
Phosphorus |
0.025 max * |
|
Sulphur |
0.025 max * |
|
Molybdenum |
0.90 – 1.10 |
|
Chromium |
2.00 – 2.50 |
|
Silicon |
0.15 – 0.50 |
|
Manganese |
0.30 – 0.60 |
|
Property |
Values |
|
Hardness |
197 – 237 BHN (75 Ksi min) |
|
Ultimate Tensile Strength * |
95 min Ksi (655 Mpa) |
|
Elongation * |
17 % min |
|
Reduction of Area * |
35 % min |
|
0.2 % Yield Strength * |
75 min Ksi (517 Mpa) |
|
Charpy Impact Toughness |
42 mean/ 33 min J at –18o C |
Smith Fittings is a leading supplier of Carbon Steel Pipe Fittings in Canberra, Australia. We offer an extensive range of Carbon Steel Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Carbon Steel Pipe Fittings from Smith Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Carbon Steel Pipe Fittings offer several advantages, making them a preferred choice across industries. They provide exceptional strength and durability, allowing them to withstand high pressures and heavy loads. These fittings are highly resistant to wear and impact, ensuring longevity in demanding conditions. Cost-effectiveness is another key benefit, as carbon steel is less expensive compared to other alloys while maintaining excellent performance. Their adaptability to various temperatures and resistance to corrosion in moderate environments make them versatile for numerous applications, including oil and gas, construction, and power generation industries.
Yes, custom sizes for Carbon Steel Pipe Fittings are available at Smith Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@smithfittings.com
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| DN (Normal Pipe Size) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Carbon Steel Pipe Fittings are widely utilized in pipelines, pressure vessels, boilers, heat exchangers, and process equipment across various industries. They’re particularly well-suited for transporting hydrocarbons, steam, water, and other process fluids in oil and gas, chemical, petrochemical, and power plants. These fittings offer leak-proof, durable, and safe connections, making them the go-to choice for industrial applications that demand strength, reliability, and enduring performance in tough operating environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
